ETA40561

1.2A/16V Fully Integrated Linear Charger

ETA40561 Features

* 16V Input Standoff Voltage

* 4.2V Charge Termination Voltage

* 2.93V Trickle Charge Threshold

* Charge Current Programmable, Up to 1.2A

* 250nA BAT Current when No Charging

* Soft-start Limits in-rush Current

* ESOP8 Package APPLICATIONS

* E-cigarette

* Toys

ETA40561 General Description

ETA40561 is a single cell, fully integrated constant current (CC)/constant voltage (CV) Li-ion battery charger. Its compact package with minimum external components requirement makes the ETA40561 ideal for portable applications. No external sense resistor or blocking diode is necessary for the ETA40.

ETA40561 Datasheet (442.72 KB)

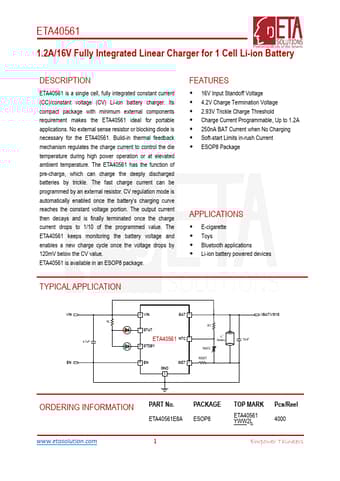

Preview of ETA40561 PDF

Datasheet Details

Part number:

ETA40561

Manufacturer:

ETA

File Size:

442.72 KB

Description:

1.2a/16v fully integrated linear charger.
