ETA5050, Fast Transient Response LDO

ETA5050 500mA Low Noise, High PSRR, Fast Transient Response LDO with Adjustable Output Voltage .
ETA5050 is a 500mA low noise and fast transient response liner regulator with adjustable output voltage and ultra-low dropout voltage.

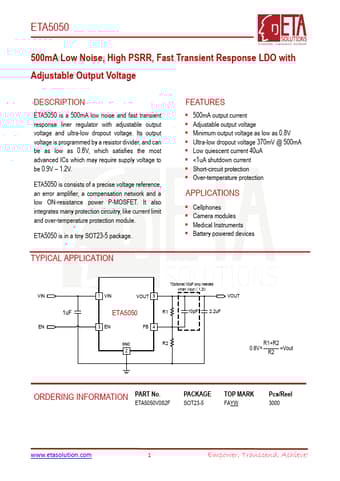

datasheet Preview Page 1 from Datasheet4u.com

ETA5050-ETA.pdf

ETA5050 Datasheet Preview — Preview of ETA5050 PDF

Datasheet Details

Part number:

ETA5050

Manufacturer:

ETA

File Size:

825.98 KB

Description:

Fast Transient Response LDO

Features

* ▪ 500mA output current ▪ Adjustable output voltage ▪ Minimum output voltage as low as 0.8V ▪ Ultra-low dropout voltage 370mV @ 500mA ▪ Low quiescent current 40uA ▪

Applications

* ▪ Cellphones ▪ Camera modules ▪ Medical Instruments ▪ Battery powered devices VIN 1uF EN 1 VIN VOUT 5
* Optional:10pF only needed when Vout 1.2V VOUT ETA5050 R1 3 EN FB 4 10pF 2.2uF GND R2 2 R1+R2 0.8V× R2 =Vout ORDERING INFORMATION PART No. PACKAGE TOP MARK ETA5050V0S2F SOT23-5
