ETA6005, 3MHz Switching Charger

ETA6005 2.5A, 3MHz Switching Charger with Dynamic Power Path Management .
ETA6005 is a switching Li-Ion battery charger with dynamic power-path control and input current limiting.

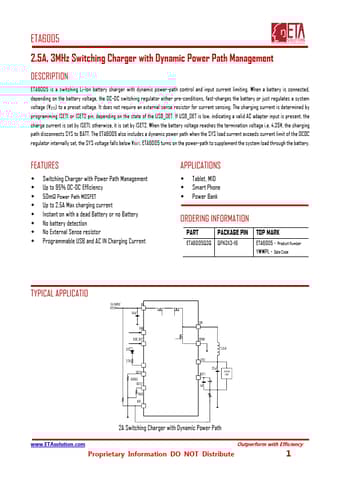

datasheet Preview Page 1 from Datasheet4u.com

ETA6005-ETA.pdf

ETA6005 Datasheet Preview — Preview of ETA6005 PDF

Datasheet Details

Part number:

ETA6005

Manufacturer:

ETA

File Size:

741.02 KB

Description:

3MHz Switching Charger

Features

* Switching Charger with Power Path Management
* Up to 95% DC-DC Efficiency
* 50mΩ Power Path MOSFET
* Up to 2.5A Max charging current
* Instant on with a dead Battery or no Battery
* No battery detection
* No External Sense resistor
* Programmable USB and AC IN Charg

Applications

* Tablet, MID
* Smart Phone
* Power Bank ORDERING INFORMATION PART PACKAGE PIN ETA6005Q3Q QFN3X3-16 TOP MARK ETA6005 - Product Number YWWPL - Date Code TYPICAL APPLICATIO 5V INPUT IN 10uF ENB USB_DET SYS 2.2K ISET1 500Ω ISET2 2KΩ NTC SW PGND 2.2uH SYS 22uF BATT SYSTEM LOAD
