ETA6012 Datasheet, Driver, ETA

ETA6012 Features

  • Driver
  • Wide range input: 2V to 6V
  • Up to1A constant driving current
  • Adjustable driving current set by external resistance
  • Short circuit protection
  • <

PDF File Details

Part number:

ETA6012

Manufacturer:

ETA

File Size:

284.44kb

Download:

📄 Datasheet

Description:

5v/1a high brightness led driver. ETA6012 is a LED driver with a constant current of up to 1A. The constant driving current can be set by external resistance. It can d

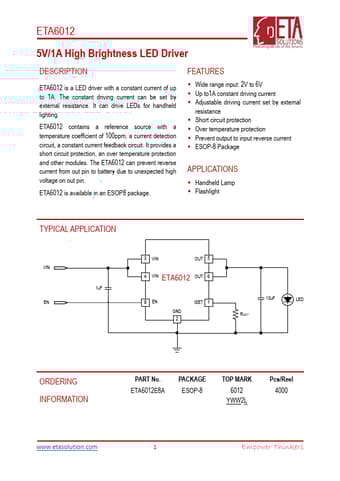

Datasheet Preview: ETA6012 📥 Download PDF (284.44kb)
Page 2 of ETA6012 Page 3 of ETA6012

ETA6012 Application

  • Applications
  • Handheld Lamp
  • Flashlight TYPICAL APPLICATION VIN 1uF EN 3 VIN OUT 5 4 VIN ETA6012 OUT 6 8 EN ISET 1 GND 2 10
