ETA9695 Ultra Low Power PMU

ETA9695 Description

ETA9695 Ultra Low Power PMU with 16V Linear Charger and 5V Boost Converter .
ETA9695 is an ultra low power PMU with 2 channels: a 16V single cell Li+ battery linear charger and a 5V Boost synchronous converter with true-shutoff.

ETA9695 Features

* Ultra Low IQ when Standby, Ibat

ETA9695 Applications

* TWS BT earbuds charge case
* Bluetooth application
* Battery powered IOT module
* Power bank TYPICAL APPLICATION VIN 10uF 2 VIN 2K 5VOUT 5 7 STAT BST_EN 6 ETA9695 Riset 1 ISET SW 4 2.2uH VOUT 4.7uF BOOST_EN CHARGE_EN 8 CHRG_EN GND 9 BAT 3 10uF Li + Battery ORDERIN

📥 Download Datasheet

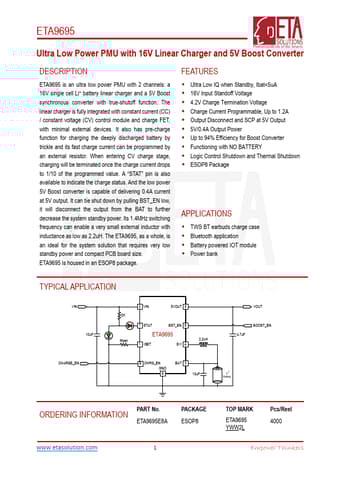

Preview of ETA9695 PDF
