ETA9698 Ultra Low Power PMU

ETA9698 Description

ETA9698 Ultra Low Power PMU with 40V Linear Charger and 5V Boost Converter .
ETA9698 is an ultra low power PMU with 2 channels: a 40V single cell Li+ battery linear charger and a 5V Boost synchronous converter with true-shutoff.

ETA9698 Features

* Ultra low IQ when standby, Ibat

ETA9698 Applications

* TWS BT earbuds charge case
* Bluetooth application
* Battery powered IOT module
* Power Bank TYPICAL APPLICATION VIN Li+ Battery Pack 10uF 2.2UH 10uF 2 VIN VOUT 6 ETA9698 3 BAT BSTEN 7 1 NTC STAT 8 5 SW ISET 10 GND 9 4.7uF 3.5K Riset Vout BOOST_EN VIN www. etasolutio

📥 Download Datasheet

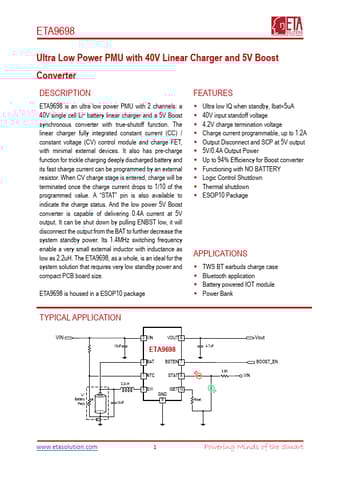

Preview of ETA9698 PDF
