2M219 Datasheet - ETC

2M219 - 2M219 Series

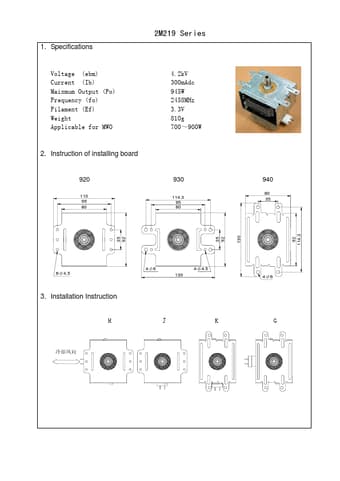

2M219 Series 1.

Specifications Voltage (ebm) Current (Ib) Maixmum Output (Po) Frequency (fo) Filament (Ef) Weight Applicable for MWO 4.2kV 300mAdc 945W 2458MHz 3.3V 810g 700~900W 2.

Instruction of installing board 920 110 95 80 930 114.3 95 80 940 80 35 6- 4.5 4- 6 130 4- 4.5 4- 6 3.

Installation Instruction J H K G 92 114.3 130 35 92 35 92 2M219 Series 2M219K Outline :mm 114.3± 0.8 102MAX 4- 6± 0.05 95± 1 P PM 36.5± 1 50± 1 6.5± 1 20± 1 35± 0.8 FIL 50± 1 80± 1 (1

2M219-ETC.pdf

Preview of 2M219 PDF
2M219 Datasheet Preview Page 2 2M219 Datasheet Preview Page 3

Datasheet Details

Part number:

2M219

Manufacturer:

ETC

File Size:

179.89 KB

Description:

2m219 series.
