2N6256 - NPN SILICON RF POWER TRANSISTOR

2N6256 Description

2N62S6 (SILICON) The RF Line NPN SILICON RF POWER TRANSISTOR designed for 12.5 Volt.VHF/UHF large signal Amplifier/Multiplier applications required.

2N6256 Applications

* required in industrial and commercial FM equipment operating to 520 MHz.
* Specified 12.5 Volt. 470 MHz Characteristics Power Output = 0.5 Watts Minimum Gain = 7.0 dB Efficiency = 60%
* Characterized with series eqUivalent large signal impedance parameters
* Driver for 2N5944

📥 Download Datasheet

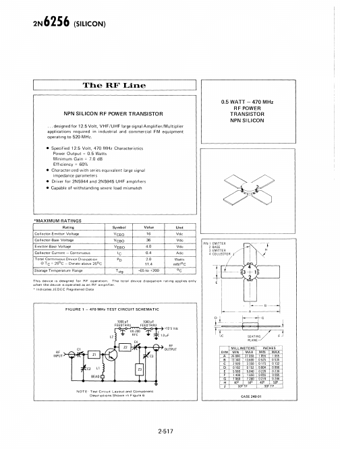

Preview of 2N6256 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2N6256
Manufacturer
ETC
File Size
232.00 KB
Datasheet
2N6256-ETC.pdf
Description
NPN SILICON RF POWER TRANSISTOR
