2SC4977 - MOLD TYPE BIPOLAR TRANSISTORS

2SC4977 Description

INCHANGE Semiconductor isc Product Specification isc Silicon NPN Power Transistor 2SC4977 .
Collector-Emitter Sustaining Voltage: VCEO(SUS)= 400V(Min). Fast Switching Speed. Collector-Emitter Saturation Voltage: VCE(sat)= 0.

2SC4977 Applications

* Designed for use in high-voltage, high-speed , power switching in inductive circuit , they are particularly suited for 115 and 220V switchmode applications such as switching regulator’s, inverters, DC-DC converter. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL VCBO VCEO VEBO IC ICM IB PC TJ Tstg PARA

📥 Download Datasheet

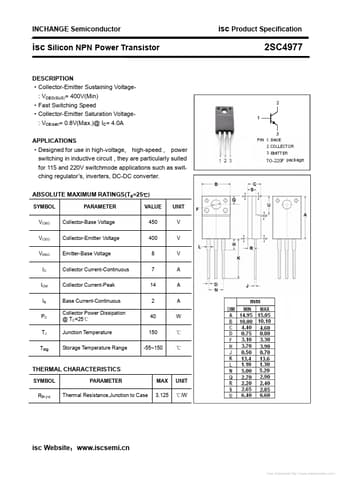

Preview of 2SC4977 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SC4977
Manufacturer
ETC
File Size
200.59 KB
Datasheet
2SC4977_ETC.pdf
Description
MOLD TYPE BIPOLAR TRANSISTORS
