2SC4978 Datasheet - Shindengen Electric Mfg.Co.Ltd

2SC4978 Switching Power Transistor

SHINDENGEN Switching Power Transistor HSV Series 2SC4978 (TE3S8) 3A NPN OUTLINE DIMENSIONS Case : E-pack Unit : mm RATINGS Absolute Maximum Ratings Item Storage Temperature Junction Temperature Collector to Base Voltage Collector to Emitter Voltage Emitter to Base Voltage Collector Current DC Collector Current Peak Base Current DC Base Current Peak Total Transistor Dissipation Symbol Tstg Tj VCBO VCEO VEBO IC ICP IB IBP PT Conditions Tc = 25℃ Ratings -55～150 150 100 80 7 3 6 1 1.5 10.

2SC4978 Datasheet (444.95 KB)

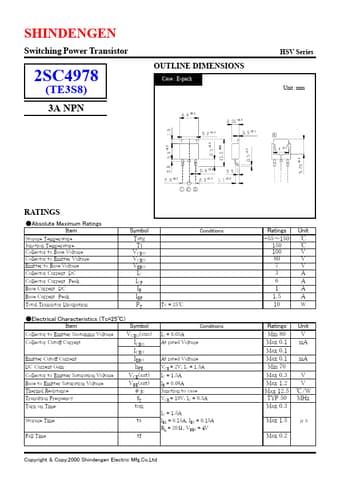

Preview of 2SC4978 PDF
2SC4978 Datasheet Preview Page 2 2SC4978 Datasheet Preview Page 3

Datasheet Details

Part number:

2SC4978

Manufacturer:

Shindengen Electric Mfg.Co.Ltd

File Size:

444.95 KB

Description:

Switching power transistor.
