2SC4976 - NPN TRANSISTOR

2SC4976 Description

Ordering number : ENN5507B 2SA1875 / 2SC4976 PNP / NPN Epitaxial Planar Silicon Transistors 2SA1875 / 2SC4976 High-Definition CRT Display Video Outp.

2SC4976 Features

* Package Dimensions unit : mm 2045B [2SA1875 / 2SC4976] 6.5 5.0 4 1.5
* High fT : fT=400MHz(typ). High breakdown voltage : VCEO≥200V(min). Large current capacitance. Small reverse transfer capacitance and excellent high -frequency characteristic : Cr

📥 Download Datasheet

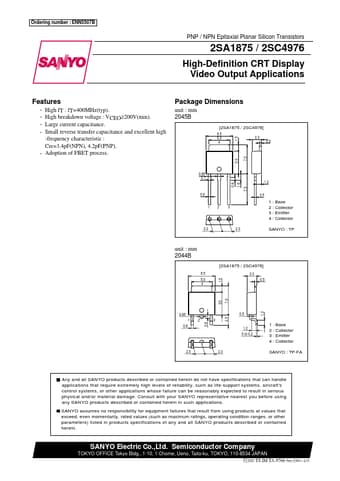

Preview of 2SC4976 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SC4976
Manufacturer
Sanyo Semicon Device
File Size
31.11 KB
Datasheet
2SC4976_SanyoSemiconDevice.pdf
Description
NPN TRANSISTOR
