2SC4922 - NPN TRANSISTOR

2SC4922 Description

Ordering number:EN4768 NPN Epitaxial Planar Silicon Transistor 2SC4922 Muting Circuit, Driver Applications .

2SC4922 Features

* High DC current gain.
* On-chip bias resistance (R1=47kΩ, R2=47kΩ).
* Very small-sized package permitting 2SC4922- applied sets to be made smaller and slimmer.
* Small ON resistance. Package Dimensions unit:mm 2106A [2SC4922] 0.3 0.75 0.6 0 to 0.1 0.4 0.8 0.4 1.6 0.1max 0.5 0.

📥 Download Datasheet

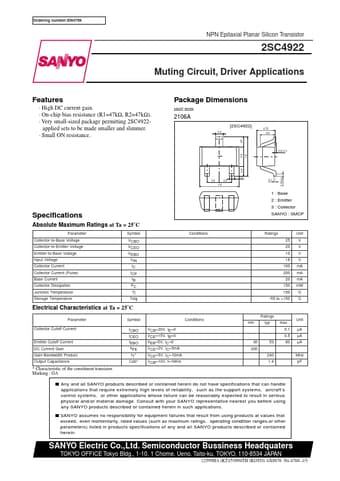

Preview of 2SC4922 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SC4922
Manufacturer
Sanyo Semicon Device
File Size
58.46 KB
Datasheet
2SC4922_SanyoSemiconDevice.pdf
Description
NPN TRANSISTOR
