5490A

DECADE COUNTER

5490A General Description

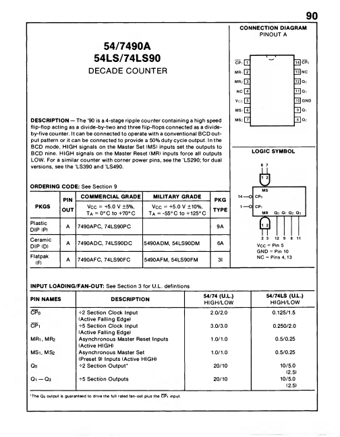

* The ’90 is a 4-stage ripple counter containing a high speed flip-flop acting as a divide-by-two and three flip-flops connected as a divideby-five counter. It can be connected to operate with a conventional BCD out­ put pattern or it can be connected to provide a 50% duty cycle output. In t.

5490A Datasheet (302.31 KB)

Preview of 5490A PDF

Datasheet Details

Part number:

5490A

Manufacturer:

ETC

File Size:

302.31 KB

Description:

Decade counter.
