5493A

DIVIDE-BY-SIXTEEN COUNTER

Image	Manufacturer	B2B MPN	Description	Distributor	Stock	Quantity	Price	Buy Now
	Rochester Electronics LLC	DM5493AW-883C	BINARY COUNTER	DigiKey	0	147 units	$2.01	🛒 Buy Now

5493A Datasheet (235.33 KB)

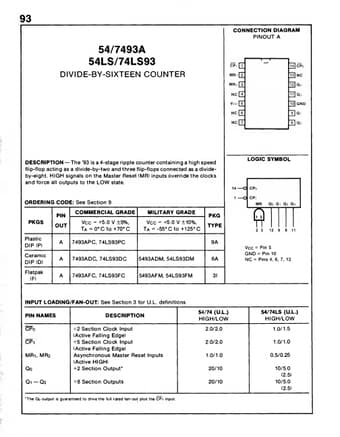

5493A Datasheet Preview — Preview of 5493A PDF

Datasheet Details

Part number:

5493A

Manufacturer:

ETC

File Size:

235.33 KB

Description:

Divide-by-sixteen counter.

5493A General Description

* The ’93 is a 4-stage ripple counter containing a high speed flip-flop acting as a divide-by-two and three flip-flops connected as a divideby-eight. HIGH signals on the Master Reset (MR) inputs override the clocks and force all outputs to the LOW state. ORDERING CODE: See Section 9 PKGS .
