AHF2800, High Reliability DC/DC Converters

www.DataSheet4U.com AHF2800 Series .
The AHF Series of DC/DC converters feature single or dual outputs over the full military temperature range.

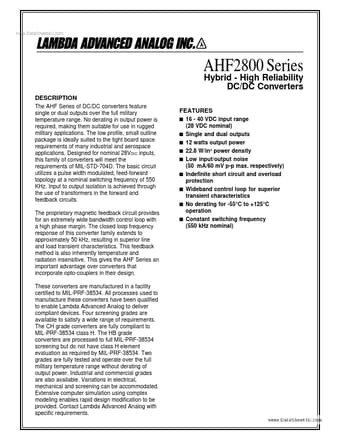

datasheet Preview Page 1 from Datasheet4u.com

AHF2800_ETC.pdf

AHF2800 Datasheet Preview — Preview of AHF2800 PDF

Datasheet Details

Part number:

AHF2800

Manufacturer:

ETC

File Size:

161.89 KB

Description:

High Reliability DC/DC Converters

Features

* s 16 - 40 VDC input range s s s s s s s s (28 VDC nominal) Single and dual outputs 12 watts output power 22.8 W/in3 power density Low input/output noise (50 mA/60 mV p-p max. respectively) Indefinite short circuit and overload protection Wideband control loop for superior transient characteristics

Applications

* The low profile, small outline package is ideally suited to the tight board space requirements of many industrial and aerospace applications. Designed for nominal 28VDC inputs, this family of converters will meet the requirements of MIL-STD-704D. The basic circuit utilizes a pulse width modulated,
