AHF2815S, AHF28xx, HYBRID-HIGH RELIABILITY DC-DC CONVERTER

HYBRID-HIGH RELIABILITY DC-DC CONVERTER PD-94541E AHF SERIES 28V Input, Single/Dual Output .
The AHF Series of DC-DC converters feature single or dual outputs over the full military temperature range.

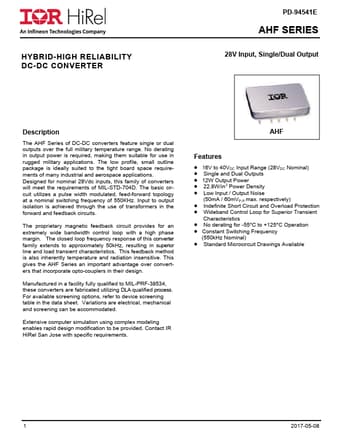

datasheet Preview Page 1 from Datasheet4u.com

AHF28xx_InternationalRectifier.pdf

AHF2815S Datasheet Preview — This datasheet PDF includes multiple part numbers: AHF2815S, AHF28xx. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

AHF2815S, AHF28xx

Manufacturer:

International Rectifier

File Size:

456.97 KB

Description:

HYBRID-HIGH RELIABILITY DC-DC CONVERTER

Note:

This datasheet PDF includes multiple part numbers: AHF2815S, AHF28xx.
Please refer to the document for exact specifications by model.

Features

*  16V to 40VDC Input Range (28VDC Nominal)
*  Single and Dual Outputs
*  12W Output Power
*  22.8W/in3 Power Density
*  Low Input / Output Noise (50mA / 60mVP-P max. respectively)
*  Indefinite Short Circuit and Overload Protection
*  Wideband Control Loop for Super

Applications

* The low profile, small outline package is ideally suited to the tight board space requirements of many industrial and aerospace applications. Designed for nominal 28Vdc inputs, this family of converters will meet the requirements of MIL-STD-704D. The basic circuit utilizes a pulse width modulated,
