AHF2, HIGHLY RELIABLE TIP SENSOR CONTAINING A PHOTO SENSOR

AHF2 SMALL, HIGHLY RELIABLE TIP SENSOR CONTAINING A PHOTO SENSOR AHF2 (TIP) SWITCHES Compliance with RoHS Directive .

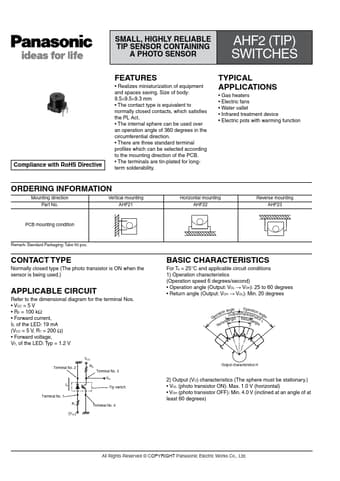

datasheet Preview Page 1 from Datasheet4u.com

AHF2-Panasonic.pdf

AHF2 Datasheet Preview — Preview of AHF2 PDF

Datasheet Details

Part number:

AHF2

Manufacturer:

Panasonic

File Size:

80.40 KB

Description:

HIGHLY RELIABLE TIP SENSOR CONTAINING A PHOTO SENSOR

Features

* Realizes miniaturization of equipment and spaces saving. Size of body: 9.5×9.5×9.3 mm
* The contact type is equivalent to normally closed contacts, which satisﬁes the PL Act.
* The internal sphere can be used over an operation angle of 360 degrees in the circumferential dir

Applications

* Gas heaters
* Electric fans
* Water vallet
* Infrared treatment device
* Electric pots with warming function ORDERING INFORMATION Mounting direction Part No. Vertical mounting AHF21 Horizontal mounting AHF22 Reverse mounting AHF23 PCB mounting conditio
