AHF2805S, AHF28xx HYBRID-HIGH RELIABILITY DC-DC CONVERTER

International Rectifier

Description

HYBRID-HIGH RELIABILITY DC-DC CONVERTER PD-94541E AHF SERIES 28V Input, Single/Dual Output .
The AHF Series of DC-DC converters feature single or dual outputs over the full military temperature range.

📥 Download Datasheet

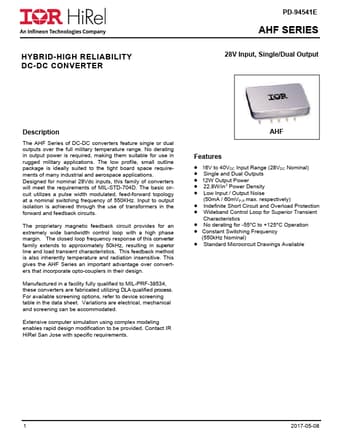

AHF2805S Datasheet Preview — This datasheet PDF includes multiple part numbers: AHF2805S, AHF28xx. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: AHF2805S, AHF28xx
Manufacturer: International Rectifier
File Size: 456.97 KB
Datasheet: AHF28xx_InternationalRectifier.pdf
Description: HYBRID-HIGH RELIABILITY DC-DC CONVERTER
Note: This datasheet PDF includes multiple part numbers: AHF2805S, AHF28xx.
Please refer to the document for exact specifications by model.

Features

*  16V to 40VDC Input Range (28VDC Nominal)
*  Single and Dual Outputs
*  12W Output Power
*  22.8W/in3 Power Density
*  Low Input / Output Noise (50mA / 60mVP-P max. respectively)
*  Indefinite Short Circuit and Overload Protection
*  Wideband Control Loop for Super

Applications

* The low profile, small outline package is ideally suited to the tight board space requirements of many industrial and aerospace applications. Designed for nominal 28Vdc inputs, this family of converters will meet the requirements of MIL-STD-704D. The basic circuit utilizes a pulse width modulated,
