BA4910FP - High Voltage high side switch

BA4910FP Description

99W068A High Voltage high side switch BA4910FP .
The BA4910FP is a high voltage high side switch which has an output that can be turned ON/OFF by a CTL pin.

BA4910FP Features

* 1) Maximum voltage of 50V PNP 2) Due to built-in output current control, IC is protected from destruction caused by output short circuits 3) Built-in over current detection delay circuit 4) Surge resistant due to over voltage protection circuit being built-in. 5) Built-in temperature protection circ

📥 Download Datasheet

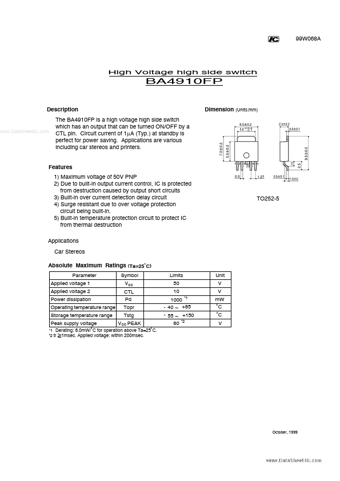

Preview of BA4910FP PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BA4910FP
Manufacturer
ETC
File Size
135.94 KB
Datasheet
BA4910FP_ETC.pdf
Description
High Voltage high side switch
