BA4908, System Regulator

03W201A System Regulator for Car Stereo BA4908 6.5 ± 0.5 7.0 ± 0.1 6.9 ± 0.1 .
BA4908 is a system regulator IC for car stereo.

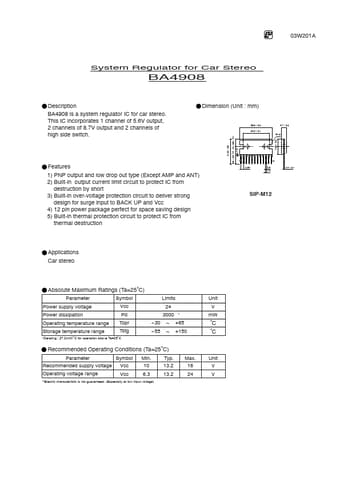

datasheet Preview Page 1 from Datasheet4u.com

BA4908_Rohm.pdf

BA4908 Datasheet Preview — Preview of BA4908 PDF

Datasheet Details

Part number:

BA4908

Manufacturer:

ROHM ↗

File Size:

214.28 KB

Description:

System Regulator

Features

* 1) PNP output and low drop out type (Except AMP and ANT) 2) Built-in output current limit circuit to protect IC from destruction by short 3) Built-in over-voltage protection circuit to deliver strong design for surge input to BACK UP and Vcc 4) 12 pin power package perfect for space saving design 5)

Applications

* Car stereo Absolute Maximum Ratings (Ta=25˚C) Parameter Power supply voltage Power dissipation Operating temperature range Storage temperature range Symbol Vcc Pd Topr Tstg -30 -55 Limits 24 3000 ∗ ~ ~ Unit V mW +85 +150 ˚C ˚C ∗Derating : 27.2mW/˚C for operation above Ta=25˚C Recommended Operat
