BA4911

System regulator

BA4911 Features

* 1) PNP output and low drop out type 2) Built-in output current limits circuit to protect IC from destruction by short 3) Built-in over-voltage protection circuit to deliver strong design for surge input to BACK UP and Vcc 4) 12pin power package perfect for space saving design 5) Built-in thermal pro

BA4911 General Description

BA4911 is a system regulator IC for car stereo. This IC incorporates 1 channel of 5.0V output, 2 channels of 8.12V output, 1channel of 7.9V output, 1channel of 10.3V output and 2 channels of high side switch. 21.6 ± 0.5 Dimension (Unit : mm) 29.8 ± 0.2 24.0 ± 0.1 4.7 ± 0.2 R1.8 6.9 ± 0.1 7.0 ± 0..

BA4911 Datasheet (220.98 KB)

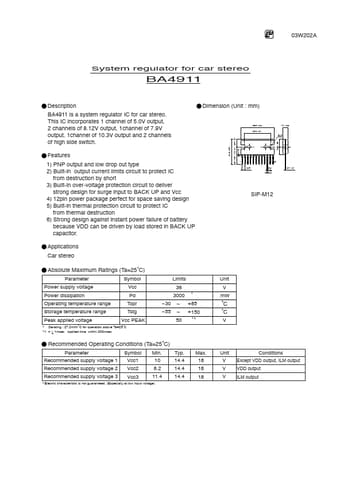

Preview of BA4911 PDF

Datasheet Details

Part number:

BA4911

Manufacturer:

ROHM ↗

File Size:

220.98 KB

Description:

System regulator.
