CMPS03 Datasheet - ETC

CMPS03 CMPS03 - Robot Compass Module

CMPS03 - Robot Compass Module This compass module has been specifically designed for use in robots as an aid to navigation. The aim was to produce a unique number to represent the direction the robot is facing. The compass uses the Philips KMZ51 magnetic field sensor, which is sensitive enough to detect the Earths magnetic field. The output from two of them mounted at right angles to each other is used to compute the direction of the horizontal component of the Earths magnetic field. Connections.

CMPS03 Datasheet (105.49 KB)

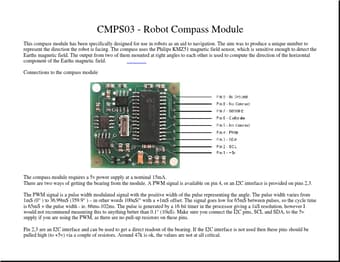

Preview of CMPS03 PDF

Datasheet Details

Part number:

CMPS03

Manufacturer:

ETC

File Size:

105.49 KB

Description:

Cmps03 - robot compass module.
