Datasheet Details
| Part number | CMPSH-3 |
|---|---|
| Manufacturer | Central Semiconductor |
| File Size | 760.38 KB |
| Description | SCHOTTKY DIODES |
| Datasheet | CMPSH-3_CentralSemiconductorCorp.pdf |
|
|

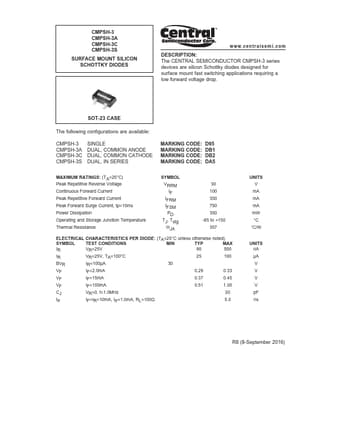

Overview: CMPSH-3 CMPSH-3A CMPSH-3C CMPSH-3S SURFACE MOUNT SILICON SCHOTTKY DIODES w w w. c e n t r a l s e m i .
| Part number | CMPSH-3 |
|---|---|
| Manufacturer | Central Semiconductor |
| File Size | 760.38 KB |
| Description | SCHOTTKY DIODES |
| Datasheet | CMPSH-3_CentralSemiconductorCorp.pdf |
|
|
|
: The CENTRAL SEMICONDUCTOR CMPSH-3 series devices are silicon Schottky diodes designed for surface mount fast switching applications requiring a low forward voltage drop.
SOT-23 CASE The following configurations are available: CMPSH-3 CMPSH-3A CMPSH-3C CMPSH-3S SINGLE DUAL, COMMON ANODE DUAL, COMMON CATHODE DUAL, IN SERIES MARKING CODE: D95 MARKING CODE: DB1 MARKING CODE: DB2 MARKING CODE: DA5 MAXIMUM RATINGS: (TA=25°C) Peak Repetitive Reverse Voltage Continuous Forward Current Peak Repetitive Forward Current Peak Forward Surge Current, tp=10ms Power Dissipation Operating and Storage Junction Temperature Thermal Resistance SYMBOL VRRM IF IFRM IFSM PD TJ, Tstg ΘJA 30 100 350 750 350 -65 to +150 357 ELECTRICAL CHARACTERISTICS PER DIODE: (TA=25°C unless otherwise noted) SYMBOL TEST CONDITIONS MIN TYP MAX IR VR=25V 90 500 IR VR=25V, TA=100°C 25 100 BVR IR=100μA 30 VF IF=2.0mA 0.29 0.33 VF IF=15mA 0.37 0.45 VF IF=100mA 0.51 1.00 CJ VR=0, f=1.0MHz 20 trr IF=IR=10mA, Irr=1.0mA, RL=100Ω 5.0 UNITS V mA mA mA mW °C °C/W UNITS nA μA V V V V pF ns R8 (8-September 2016) CMPSH-3 CMPSH-3A CMPSH-3C CMPSH-3S SURFACE MOUNT SILICON SCHOTTKY DIODES SOT-23 CASE - MECHANICAL OUTLINE 21 3 PIN CONFIGURATIONS CMPSH-3 LEAD CODE: 1) Anode 2) No Connection 3) Cathode MARKING CODE: D95 CMPSH-3A LEAD CODE: 1) Cathode D2 2) Cathode D1 3) Anode D1, D2 MARKING CODE: DB1 CMPSH-3C LEAD CODE: 1) Anode D2 2) Anode D1 3) Cathode D1, D2 MARKING CODE: DB2 CMPSH-3S LEAD CODE: 1) Anode D2 2) Cathode D1 3) Anode D1, Cathode D2 MARKING CODE: DA5 w w w.
c e n t r a l s e m i .
