CMPSH-3A SCHOTTKY DIODES

Central Semiconductor Corp

Description

CMPSH-3 CMPSH-3A CMPSH-3C CMPSH-3S SURFACE MOUNT SILICON SCHOTTKY DIODES w w w.c e n t r a l s e m i .c o m .
The CENTRAL SEMICONDUCTOR CMPSH-3 series devices are silicon Schottky diodes designed for surface mount fast switching applications requiring a low f.

📥 Download Datasheet

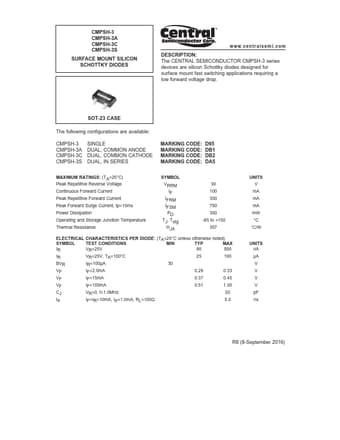

CMPSH-3A Datasheet Preview — Preview of CMPSH-3A PDF

Datasheet Specifications

Part number: CMPSH-3A
Manufacturer: Central Semiconductor ↗ Corp
File Size: 760.38 KB
Datasheet: CMPSH-3A_CentralSemiconductorCorp.pdf
Description: SCHOTTKY DIODES

Applications

* requiring a low forward voltage drop. SOT-23 CASE The following configurations are available: CMPSH-3 CMPSH-3A CMPSH-3C CMPSH-3S SINGLE DUAL, COMMON ANODE DUAL, COMMON CATHODE DUAL, IN SERIES MARKING CODE: D95 MARKING CODE: DB1 MARKING CODE: DB2 MARKING CODE: DA5 MAXIMUM RATINGS: (TA=25°C) Pea
