CMPSH05-4C

SILICON SCHOTTKY DIODE

CMPSH05-4C Features

* Low VF=0.35V max @ 100mA

* VRRM=40V

* IF=500mA MAXIMUM RATINGS: (TA=25°C) Peak Repetitive Reverse Voltage Continuous Forward Current Peak Repetitive Forward Current, tp ≤ 1.0ms Peak Forward Surge Current, tp=8.0ms Power Dissipation Operating and Storage Junction Temperatu

CMPSH05-4C General Description

The CENTRAL SEMICONDUCTOR CMPSH05-4C is a Dual, Common Cathode HIGH CURRENT, LOW VF 40 volt Schottky Diode pair packaged in a space saving SOT-23F surface mount case. This device has been designed for small signal general purpose applications when small size and operational efficiency are prime req.

CMPSH05-4C Datasheet (111.62 KB)

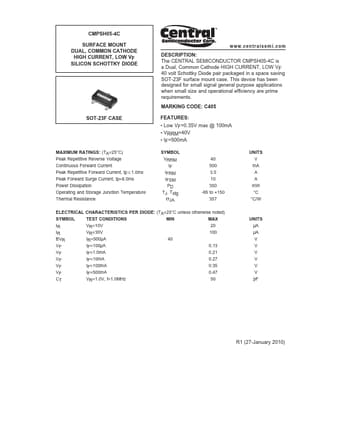

Preview of CMPSH05-4C PDF

Datasheet Details

Part number:

CMPSH05-4C

Manufacturer:

Central Semiconductor ↗

File Size:

111.62 KB

Description:

Silicon schottky diode.
CMPSH05-4C SURFACE MOUNT DUAL, COMMON CATHODE HIGH CURRENT, LOW VF SILICON SCHOTTKY DIODE SOT-23F CASE w w w. c e n t r a l s e m i . c o m DESCRIPTI.
