CMPSH05-4 - SCHOTTKY DIODE

CMPSH05-4 Description

CMPSH05-4 SURFACE MOUNT SILICON HIGH CURRENT, LOW VF SCHOTTKY DIODE w w w.c e n t r a l s e m i .c o m .
The CENTRAL SEMICONDUCTOR CMPSH05-4 is a high current, low VF 40 volt Schottky diode packaged in a space saving SOT-23 surface mount case.

CMPSH05-4 Features

* Low VF = 0.35V max @ 100mA
* VRRM = 40V
* IF = 500mA MAXIMUM RATINGS: (TA=25°C) Peak Repetitive Reverse Voltage Continuous Forward Current Peak Repetitive Forward Current, tp≤1.0ms Peak Forward Surge Current, tp=8.0ms Power Dissipation Operating and Storage Junction Tempe

📥 Download Datasheet

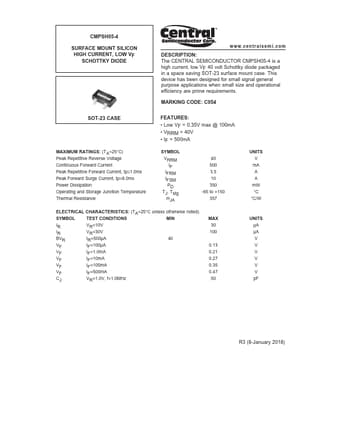

Preview of CMPSH05-4 PDF
