CMPS5061 Datasheet - Central Semiconductor

CMPS5061 SURFACE MOUNT SILICON CONTROLLED RECTIFIER

The CENTRAL SEMICONDUCTOR CMPS5061 Series types are epoxy molded PNPN Silicon Controlled Rectifiers manufactured in an SOT-23 case, designed for control systems and sensing circuit applications. MARKING CODE: CMPS5061: CMPS5062: CMPS5063: CMPS5064: P2A P2B P2C P2D SOT-23 CASE MAXIMUM RATINGS: (TA.

CMPS5061_CentralSemiconductor.pdf

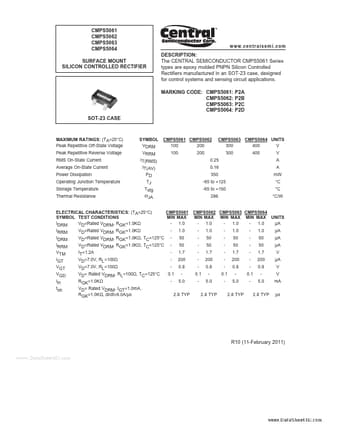

Preview of CMPS5061 PDF
CMPS5061 Datasheet Preview Page 2

Datasheet Details

Part number:

CMPS5061

Manufacturer:

Central Semiconductor ↗

File Size:

346.75 KB

Description:

Surface mount silicon controlled rectifier.
