CXA8038P Resonance Mode Switching Regulator

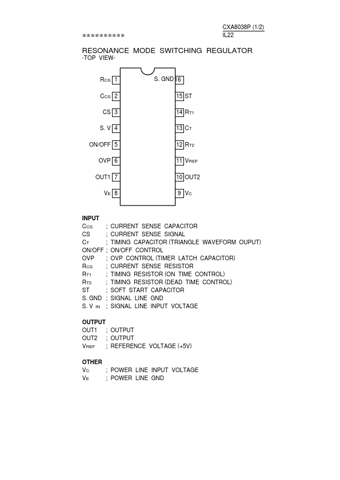

CXA8038P (1/2) IL22 RESONANCE MODE SWITCHING REGULATOR -TOP VIEW- RCS 1 CCS 2 CS 3 S. V 4 ON/OFF 5 OVP 6 OUT1 7 VE 8 S. GND 16 15 ST 14 RT1 13 CT 12 RT2 11 VREF 10 OUT2 9 VC INPUT CCS ; CURRENT SENSE CAPACITOR CS ; CURRENT SENSE SIGNAL CT ; TIMING CAPACITOR (TRIANGLE WAVEFORM OUPUT) ON/OFF ; ON/OFF CONTROL OVP ; OVP CONTROL (TIMER LATCH CAPACITOR) RCS ; CURRENT SENSE RESISTOR RT1 ; TIMING RESISTOR (ON TIME CONTROL) RT2 ; TIMING .
