* q q q q q TVJ = 150°C; t = 10 ms (50 Hz), sine t = 8.3 ms (60 Hz), sine I2t TVJ = 45°C t = 10 ms (50 Hz), sine t = 8.3 ms (60 Hz), sine q q International standard package JEDEC TO-220 AC Planar passivated chips Very short recovery time Extremely low switching losses Low IRM-values Soft recovery
DSEI12
ETC
77.34 KB
Fast recovery epitaxial diode.
Fast Recovery Epitaxial Diode (FRED)

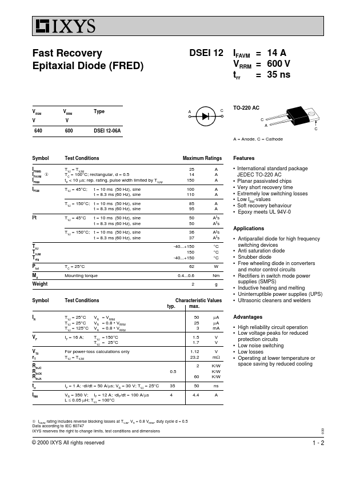

DSEI 12
IFAVM = 14 A VRRM = 600 V trr = 35 ns
VRSM V 640
VRRM V 600
Type
A
C
TO-220 AC
C A
DSEI 12-06A A.
