DSEI120-12A, Fast Recovery Epitaxial Diode

Fast Recovery Epitaxial Diode (FRED) DSEI 120-12A IFAV = 109 A VRRM = 1200 V trr = 40 ns Part number DSEI 120-12A TO-247AD 3 1/4 4 (TAB) Featur.

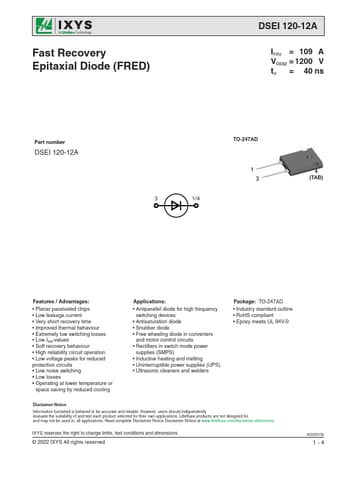

datasheet Preview Page 1 from Datasheet4u.com

DSEI120-12A-IXYSCorporation.pdf

DSEI120-12A Datasheet Preview — Preview of DSEI120-12A PDF

Datasheet Details

Part number:

DSEI120-12A

Manufacturer:

IXYS Corporation

File Size:

205.64 KB

Description:

Fast Recovery Epitaxial Diode

Features

* / Advantages:
* Planar passivated chips
* Low leakage current
* Very short recovery time
* Improved thermal behaviour
* Extremely low switching losses
* Low IRM-values
* Soft recovery behaviour
* High reliability circuit operation

Applications

* Antiparallel diode for high frequency switching devices
* Antisaturation diode
* Snubber diode
* Free wheeling diode in converters and motor control circuits
* Rectifiers in switch mode power supplies (SMPS)
* Inductive heating and melting
