EPA060B-70 - High Efficiency Heterojunction Power FET

EPA060B-70 Description

Excelics DATA SHEET .

EPA060B-70 Features

* NON-HERMETIC LOW COST CERAMIC 70mil PACKAGE
* +26dBm TYPICAL OUTPUT POWER
* 9.0dB TYPICAL POWER GAIN AT 12 GHZ
* 0.4 dB TYPICAL NOISE FIGURE AT 2GHz
* 20 dB TYPICAL ASSOCIATED GAIN AT 2 GHz
* 0.3 X 600 MICRON RECESSED “MUSHROOM” GATE
* Si3N4

EPA060B-70 Applications

* High Dynamic Range LNA

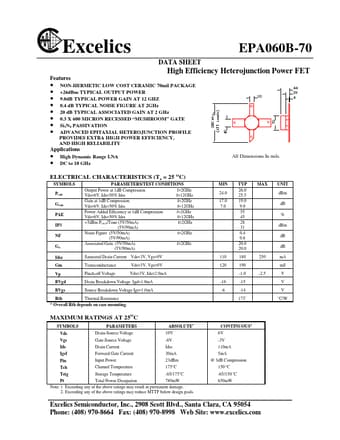

* DC to 18 GHz  All Dimensions In mils. ELECTRICAL CHARACTERISTICS (Ta = 25 OC) SYMBOLS P1dB G1dB PAE IP3 NF GA Idss Gm Vp BVgd BVgs PARAMETERS/TEST CONDITIONS Output Power at 1dB Compression f=2GHz Vds=6V, Ids=50% Idss f=12GHz Gain at 1dB Compression f=
