Part number: GB4571
Manufacturer: ETC
File Size: 149.55 KB
Datasheet: GB4571_ETC.pdf
Description: Video Buffer with Precision Strobed DC Restore

GB4571 Product details

Description

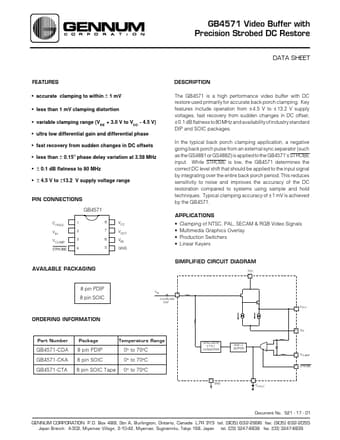

The GB4571 is a high performance video buffer with DC restore used primarily for accurate back porch clamping..

Features

accurate clamping to within ± 1 mV.
less than 1 mV clamping distortion.
variable clamping range (VEE + 3.0 V to VCC - 4.5 V).
ultra low differential gain and differential phase.
fast recovery from sudden changes in DC offsets.
less than ± 0.15° phase delay variation at 3.58 MHz.
± 0.1 dB flatness to 80 MHz.
± 4.5 V to ±13.2 V supply voltage range.
