GB4570 Datasheet, Buffer/clamp, Gennum

GB4570 Features

  • Buffer/clamp
  • accurate sync tip clamping (± 2 mV typical)
  • less than 1 mV clamping distortion
  • variable clamping voltage (VEE + 3 V to VCC -4.5 V) www.DataSheet4U.com DES

PDF File Details

Part number:

GB4570

Manufacturer:

Gennum

File Size:

169.26kb

Download:

📄 Datasheet

Description:

Monolithic video buffer/clamp. The GB4570 is a high performance video buffer/clamp used primarily for sync tip clamping of video signals. Key features include opera

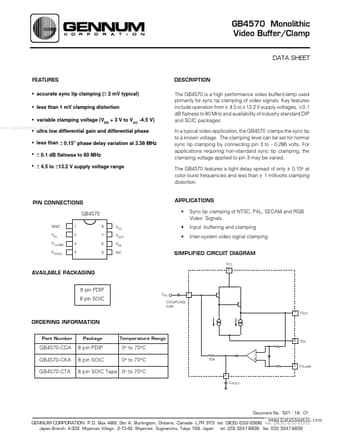

Datasheet Preview: GB4570 📥 Download PDF (169.26kb)
Page 2 of GB4570 Page 3 of GB4570

GB4570 Application

  • Applications requiring non-standard sync tip clamping, the clamping voltage applied to pin 3 may be varied. The GB4570 features a tight delay spread
