ILA8395 - ICs for TV-SETS SECAM Decoder

reference frequency input/identification input test output positive supply voltage not connected not connected ground Cloche reference filter PLL reference -(R-Y) output -(B-Y) output not connected not connected not connected not connected sandcastle pulse input video (chrominance) input SYMBOL ICC

ICs for TV-SETS SECAM Decoder ILA8395 The ILA8395 is a self-calibrating, fully integrated SECAM decoder.

The IC should preferably be used in conjunction with the PAL/NTSC decoder ILA8362 or ILA8366 and with the switched capacitor baseband delay circuit ILA4661.

The IC incorporates HF and LF filters, a demodulator and an identification circuit (luminance is not processed in this IC).

The IC needs no adjustments and very few external components are required.

A highly stable reference frequency i

ILA8395_ETC.pdf

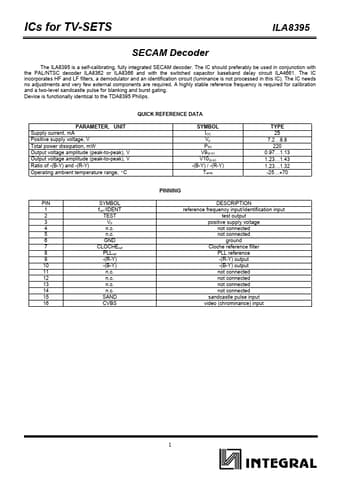

Preview of ILA8395 PDF
