ILA8356

Vertical Deflection and Guard Amplifier

IK Semiconductor

ILA8356 Features

* Few external components

* Highly efficient fully DC-coupled vertical output bridge circuit

* Vertical flyback switch

* Guard circuit

* Protection against:

* short-circuit of the output pins (7 and 4)

* short-circuit of the output pins to VP

ILA8356 General Description

Idrive(pos) Idrive(neg) VP VO(B) GND VFB VO(A) VO(guard) VI(fb) 1 2 3 4 5 6 7 8 9 input power-stage (positive); includes II(sb) signal bias input power-stage (negative);includes II(sb) signal bias operating supply voltage output voltage B ground input flyback supply voltage output voltage A guard.

ILA8356 Datasheet (204.58 KB)

ILA8356 Datasheet Preview — Preview of ILA8356 PDF

Datasheet Details

Part number:

ILA8356

Manufacturer:

IK Semiconductor

File Size:

204.58 KB

Description:

Vertical deflection and guard amplifier.

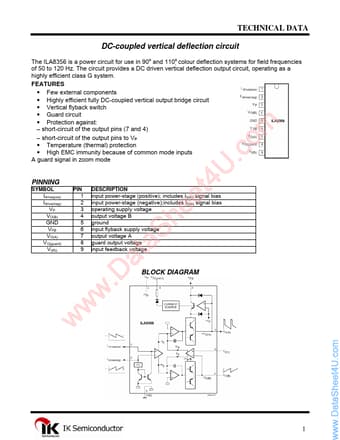

TECHNICAL DATA DC-coupled vertical deflection circuit The ILA8356 is a power circuit for use in 90o and 110o colour deflection systems for field freq.
