ILA8137 Datasheet - IK Semiconductor

ILA8137 Dual 5.1 V + 5.1V Regulator

TECHNICAL DATA ILA8137 DUAL 5.1V REGULATOR WITH DISABLE AND RESET The ILA8137 is a monolithic dual positive voltage regulator designed to provide fixed precision output voltages of 5.1 V at currents up to 1 A. An internal reset circuit generates a reset pulse when the output 1 decreases below the regulated voltage value. Output 2 can be disabled by TTL input. Short circuit and thermal protections are included. Output currents.

ILA8137_IKSemiconductor.pdf

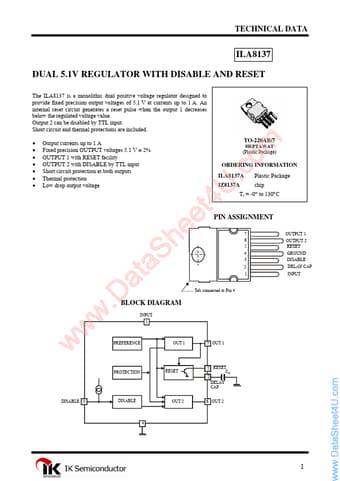

Preview of ILA8137 PDF
ILA8137 Datasheet Preview Page 2 ILA8137 Datasheet Preview Page 3

Datasheet Details

Part number:

ILA8137

Manufacturer:

IK Semiconductor

File Size:

167.35 KB

Description:

Dual 5.1 v + 5.1v regulator.
