ILA8138A Datasheet - IK Semiconductor

ILA8138A Dual 5.1 V + 12 V Regulator

TECHNICAL DATA ILA8138A 5.1V +12V REGULATOR WITH DISABLE AND RESET The ILA8138A is a monolithic dual positive voltage regulator designed to provide fixed precision output voltages of 5.1V and 12V at currents up to 1A. Output 2 can be disabled by TTL input. Short circuit and thermal protections are included in all the versions. Output currents up to 1 A Fixed precision OUTPUT 1 voltages 5.1 V ± 2% Fixed precision OUT.

ILA8138A_IKSemiconductor.pdf

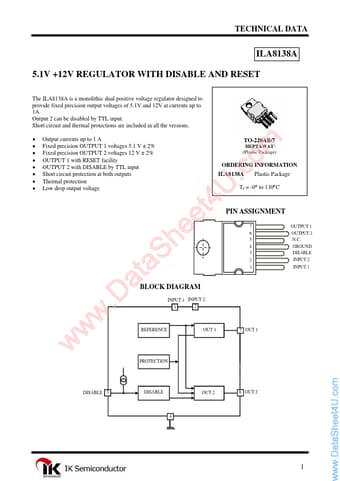

Preview of ILA8138A PDF
ILA8138A Datasheet Preview Page 2 ILA8138A Datasheet Preview Page 3

Datasheet Details

Part number:

ILA8138A

Manufacturer:

IK Semiconductor

File Size:

114.69 KB

Description:

Dual 5.1 v + 12 v regulator.
