ILA8359 Datasheet, Amplifier, Integral

ILA8359 Features

  • Amplifier The internal circuit design allows to adjust correctly device operation using a small quantity of external components. Main features: - Small quantity of external components required;

PDF File Details

Part number:

ILA8359

Manufacturer:

Integral

File Size:

138.37kb

Download:

📄 Datasheet

Description:

Vertical deflection amplifier. Package pin number 01 02 03 04 05 06 07 08 09 Symbol INA INB VP OUTB GND VFB OUTA GUARD FEEDB Pin description Input A Input B Supp

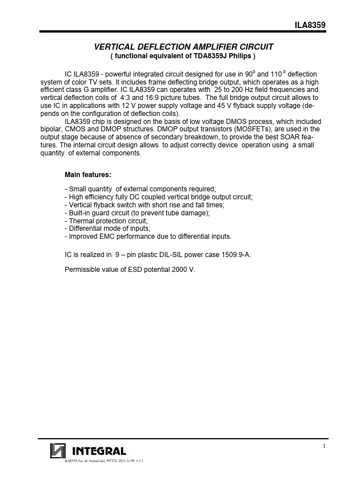

Datasheet Preview: ILA8359 📥 Download PDF (138.37kb)
Page 2 of ILA8359 Page 3 of ILA8359

ILA8359 Application

  • Applications with 12 V power supply voltage and 45 V flyback supply voltage (depends on the configuration of deflection coils). ILA8359 chip is desi
