ILA8395N

SECAM Decoder

ILA8395N Features

* Fully integrated filters

* Alignment free

* For use with baseband delay ILA8395N GENERAL DESCRIPTION The ILA8395N is a self-calibrating, fully integrated SECAM decoder. The IC should preferably be used in conjunction with the PAL/NTSC decoder ILA8362ANS (TDA8362A) or TDA8366

ILA8395N General Description

The ILA8395N is a self-calibrating, fully integrated SECAM decoder. The IC should preferably be used in conjunction with the PAL/NTSC decoder ILA8362ANS (TDA8362A) or TDA8366 and with the switched capacitor baseband delay circuit ILA4661 (TDA4661, TDA4660). The IC incorporates HF and LF filters, a d.

ILA8395N Datasheet (190.85 KB)

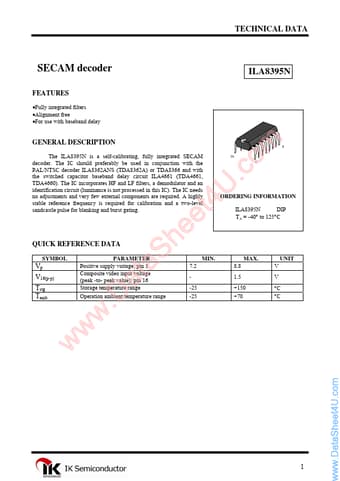

Preview of ILA8395N PDF

Datasheet Details

Part number:

ILA8395N

Manufacturer:

IK Semiconductor

File Size:

190.85 KB

Description:

Secam decoder.
