IW4093B - Quad 2-Input NAND Schmitt Triggers High-Voltage Silicon-Gate CMOS

Datasheet Details

Part number	IW4093B
Manufacturer	ETC
File Size	134.56 KB
Description	Quad 2-Input NAND Schmitt Triggers High-Voltage Silicon-Gate CMOS
Datasheet	IW4093B Datasheet
Additional preview pages of the IW4093B datasheet.

📁 Similar Datasheet

IW4093B - Quad 2-Input NADN Schmitt Trigger (IK Semiconductor)
IW4098B - Dual Monostable Multivibrator (IK Semiconductor)
IW4001B - Quad 2-Input NOR Gate (IK Semiconductor)
IW4002B - Dual 4-Input NOR Gate (IK Semiconductor)
IW4006B - 18-Bit Static Shift Register (IK Semiconductor)
IW4011B - Quad 2-Input NAND Gate (IK Semiconductor)
IW4012B - Dual 4-Input NAND Gate (IK Semiconductor)
IW4013B - Dual D-Type Flip-Flop (IK Semiconductor)
IW4015B - Dual 4-Bit Static Shift Register (IK Semiconductor)
IW4017B - Decade Counter/Driver (IK Semiconductor)

Other Datasheets by ETC

IW4013B - Dual D Flip-Flop High-Voltage Silicon-Gate CMOS
IW4051B - Analog Multiplexer Demultiplexer High-Performance Silicon-Gate CMOS
IW4052B - Analog Multiplexer Demultiplexer High-Performance Silicon-Gate CMOS
IW4066B - Quad Bilateral Switch High-Voltage Silicon-Gate CMOS
IW4071B - Quad 2-Input OR Gate High-Voltage Silicon-Gate CMOS

Full PDF Text Transcription

Click to expand full text

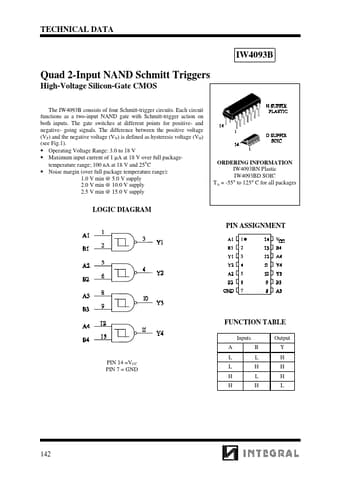

TECHNICAL DATA IW4093B Quad 2-Input NAND Schmitt Triggers High-Voltage Silicon-Gate CMOS The IW4093B consists of four Schmitt-trigger circuits. Each circuit functions as a two-input NAND gate with Schmitt-trigger action on both inputs. The gate switches at different points for positive- and negative- going signals. The difference between the positive voltage (VP) and the negative voltage (VN) is defined as hysteresis voltage (VH) (see Fig.1). • Operating Voltage Range: 3.0 to 18 V • Maximum input current of 1 µA at 18 V over full packagetemperature range; 100 nA at 18 V and 25°C • Noise margin (over full package temperature range): 1.0 V min @ 5.0 V supply 2.0 V min @ 10.0 V supply 2.5 V min @ 15.
