LA4S-123K - Power Line Chokes

This page provides the datasheet information for the LA4S-123K, a member of the LA4S-3R9K Power Line Chokes family.

Datasheet Details

Part number	LA4S-123K
Manufacturer	ETC
File Size	12.17 KB
Description	Power Line Chokes
Datasheet	LA4S-123K Datasheet
Additional preview pages of the LA4S-123K datasheet.

📁 Similar Datasheet

LA4021-11 - Display (Ledtech Electronics)
LA4023-11 - THREE DIGIT DISPLAY (Ledtech)
LA4030 - LA4030 (Sanyo)
LA4030P - 1~3W AF (Sanyo)
LA4031-11 - Display (Ledtech Electronics)
LA4031P - 1~3W AF (Sanyo)
LA4032P - 1~3W AF (Sanyo)
LA4041-11 - Display (Ledtech Electronics)
LA4051-11 - Display (Ledtech Electronics)
LA40C530F1R - LCD-TV SERVICE Manual (Samsung)

Other Datasheets by ETC

LA4S-120K - Power Line Chokes
LA4S-121K - Power Line Chokes
LA4S-122K - Power Line Chokes
LA4S-100K - Power Line Chokes
LA4S-101K - Power Line Chokes
LA4S-102K - Power Line Chokes
LA4S-103K - Power Line Chokes
LA4S-150K - Power Line Chokes

Full PDF Text Transcription

Click to expand full text

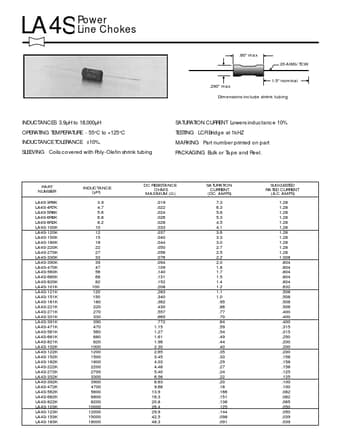

LA4S Power Line Chokes .60" max 20 AWG/TCW .290" max 1.5" nominal Dimensions include shrink tubing INDUCTANCES 3.9µH to 18,000µH OPERATING TEMPERATURE - 55°C to +125°C INDUCTANCE TOLERANCE ±10%. SLEEVING Coils covered with Poly-Olefin shrink tubing SATURATION CURRENT Lowers inductance 10% TESTING LCR Bridge at 1kHZ MARKING Part number printed on part PACKAGING Bulk or Tape and Reel.

Published: Aug 11, 2016 |
