LG2401281-LY, LCD Module

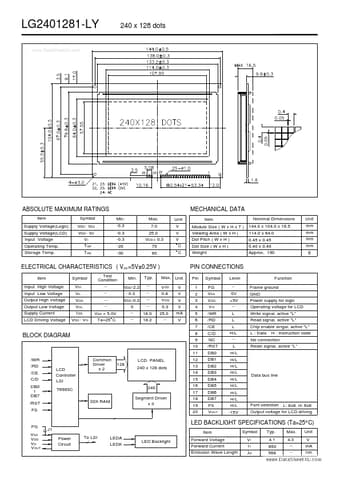

LG2401281-LY www.DataSheet4U.com 240 x 128 dots ABSOLUTE MAXIMUM RATINGS Item Supply Voltage(Logic) Supply Voltage(LCD) Input Voltage Operating Temp.

Storage Temp.

Symbol VDD - VSS VDD - VO VI Topr Tstg Min.

-0.3 -0.3 -0.3 -20 -30 Max.

7.0 25.0 VDD + 0.3 70 80 Unit V V V °C °C MECHANICAL DATA Item Nominal Dimensions Unit mm mm mm mm g Module Size ( W x H x T ) 144.0 x 104.0 x 16.5 114.0 x 64.0 Viewing Area ( W x H ) Dot Pitch ( W x H ) 0.45 x 0.45 Dot Size ( W x H ) 0.40 x 0.40 Weight Approx.
