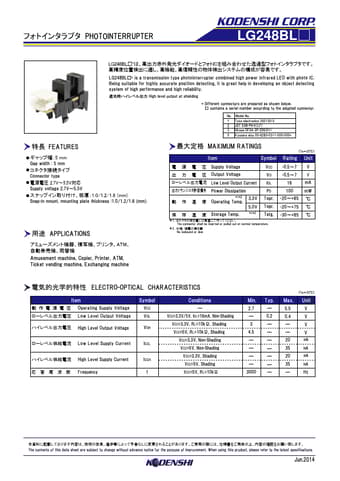

LG248BL Datasheet - KODENSHI

LG248BL PHOTOINTERRUPTER

PHOTOINTERRUPTER LG248BL LG248BL 、IC。、、。 LG248BL is a transmission type photointerrupter combined high power infrared LED with photo IC. Being suitable for highly accurate position detecting, it is great help in developing an object detecting system of high performance and high reliability. High level output at shielding Different connectors are prepared as shown below. contains a serial number according to the adopted connector. No. Model No. 1 Ty.

LG248BL Features

* ：5 mm Gap width : 5 mm

* Connector type

* 2.7V～5.5V Supply voltage 2.7V～5.5V

* 、：1.0/1.2/1.6 (mm) Snap-in mount, mounting plate thickness :1.0/1.2/1.6 (mm) APPLICATIONS MAXIMUM RATINGS （Ta＝25℃） Item Symbol Rating Unit Supply Voltage VCC -0.5～7 V Output Voltage VO
