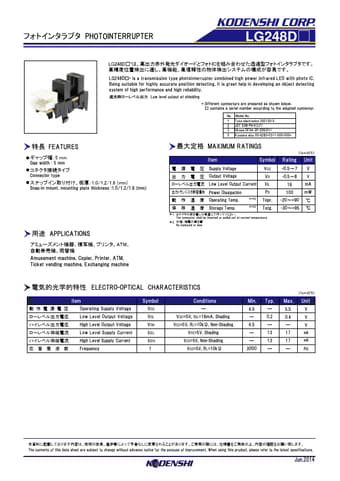

LG248D PHOTOINTERRUPTER

PHOTOINTERRUPTER LG248D LG248D 、IC。、、。 LG248D is a transmission type photointerrupter combined high power infrared LED with photo IC. Being suitable for highly accurate position detecting, it is great help in developing an object detecting system of high performance and high reliability. 　Low level output at shielding Different connectors are prepared as shown below. contains a serial number according to the adopted connector. No. Model No. 1 Tyco e.

LG248D Features

* ：5 mm Gap width : 5 mm

* Connector type

* 、：1.0/1.2/1.6 (mm) Snap-in mount, mounting plate thickness :1.0/1.2/1.6 (mm) APPLICATIONS MAXIMUM RATINGS Item Symbol （Ta＝25℃） Rating Unit Supply Voltage Output Voltage Low Level Output Current VCC VO IOL -0.5～7 -0.5～8 16 V V
