LG3202403-CW LCD Module

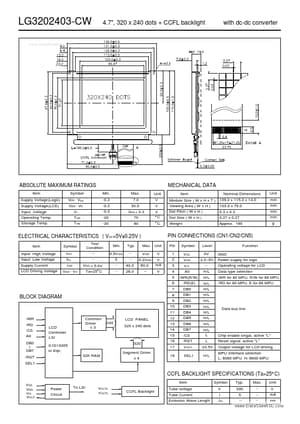

LG3202403-CW www.DataSheet4U.com 4.7", 320 x 240 dots + CCFL backlight with dc-dc converter ABSOLUTE MAXIMUM RATINGS Item Supply Voltage(Logic) Supply Voltage(LCD) Input Voltage Operating Temp. Storage Temp. Symbol VDD - VSS VDD - VO VI Topr Tstg Min. -0.3 -0.3 -0.3 -20 -30 Max. 7.0 30.0 VDD + 0.3 70 80 Unit V V V °C °C MECHANICAL DATA Item Module Size ( W x H x T ) Viewing Area ( W x H ) Dot Pitch ( W x H ) Dot Size ( W x H ) Weight Nominal Dimensions 139.0 x 115.0 x 14.0 103.0 x 79.0 0.3 x.
