LG3202404-DW LCD Module

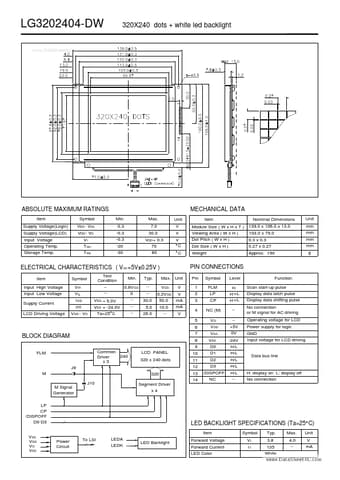

LG3202404-DW www.DataSheet4U.com 320X240 dots + white led backlight ABSOLUTE MAXIMUM RATINGS Item Supply Voltage(Logic) Supply Voltage(LCD) Input Voltage Operating Temp. Storage Temp. Symbol VDD - VSS VDD - VO VI Topr Tstg Min. -0.3 -0.3 -0.3 -20 -30 Max. 7.0 30.0 VDD + 0.3 70 80 Unit V V V °C °C MECHANICAL DATA Item Nominal Dimensions Unit mm mm mm mm g Module Size ( W x H x T ) 139.0 x 106.0 x 13.0 103.0 x 79.0 Viewing Area ( W x H ) Dot Pitch ( W x H ) 0.3 x 0.3 Dot Size ( W x H ) 0.27 x 0.
