LG3202402-LMDWH6V-CN3 - LCD Module

Datasheet Details

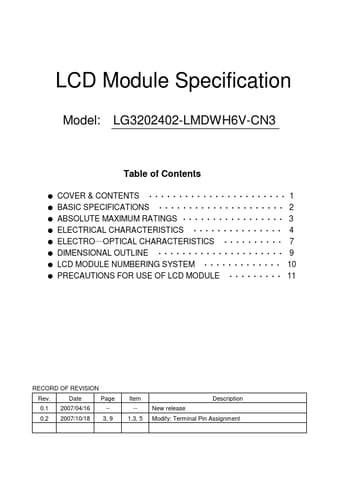

New release Modify: Terminal Pin Assignment LG3202402-LMDWH6V-CN3 Rev0.2 1. BASIC SPECIFICATIONS 1.1

Display Format : 320 X 240 Dots LCD Mode : FSTN－Blue－Negative－Transmissive Driving Method : 1/240 Duty, 1/15 Bias Viewing Direction : 6:00 Backlight : LED, white color Outline Dimension : 160.0(W) X 109.0(H) X 13.0(T) mm Viewing Area : 122.0(W) X 92.0(H) mm Dot Size : 0.33 X 0.33 mm Dot Pitch : 0.36 X 0.36 mm Weight : 220 g Driver : S6B2086 Inferface : 4 bits parallel data input Power supply : 3.3 to 5.0V for logic Built in DC-DC converter for LCD driving 5.0V for LED.
