LG3202402-DWN LCD Module

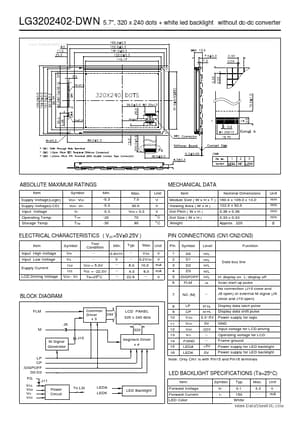

LG3202402-DW N www.DataSheet4U.com 5.7", 320 x 240 dots + white led backlight without dc-dc converter ABSOLUTE MAXIMUM RATINGS Item Supply Voltage(Logic) Supply Voltage(LCD) Input Voltage Operating Temp. Storage Temp. Symbol VDD - VSS VDD - VO VI Topr Tstg Min. -0.3 -0.3 -0.3 -20 -30 Max. 7.0 30.0 VDD + 0.3 70 80 Unit V V V °C °C MECHANICAL DATA Item Module Size ( W x H x T ) Viewing Area ( W x H ) Dot Pitch ( W x H ) Dot Size ( W x H ) Weight Nominal Dimensions 160.0 x 109.0 x 13.0 122.0 x 9.
