LR1154 Alkaline manganese button batteries

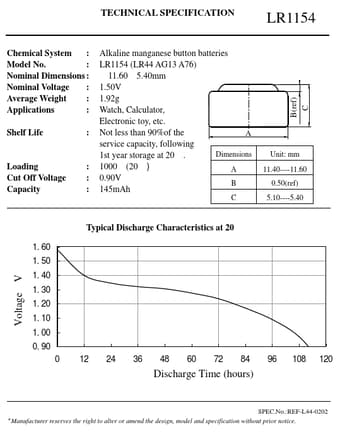

TECHNICAL SPECIFICATION LR1154 B(ref) Unit: mm 0.50(ref) Chemical System : Model No. : Nominal Dimensions : Nominal Voltage : Average Weight : Applications : Shelf Life : Loading Cut Off Voltage Capacity : : : Alkaline manganese button batteries LR1154 (LR44 AG13 A76) ¶ 11.60¡Á 5.40mm 1.50V 1.92g Watch, Calculator, Electronic toy, etc. Not less than 90%of the A service capacity, following Dimensions 1st year storage at 20¡æ . 1000¦¸ (20¡æ ) A 0.90V B 145mAh C 11.40 1.

LR1154 Datasheet (71.73 KB)

LR1154 Datasheet Preview — Preview of LR1154 PDF

Datasheet Details

Part number:

LR1154

Manufacturer:

ETC

File Size:

71.73 KB

Description:

Alkaline manganese button batteries.
