LR1108 - 1A FAST ULTRA LOW DROPOUT LINEAR REGULATOR

Product Overview

UTC

📥 Download Datasheet

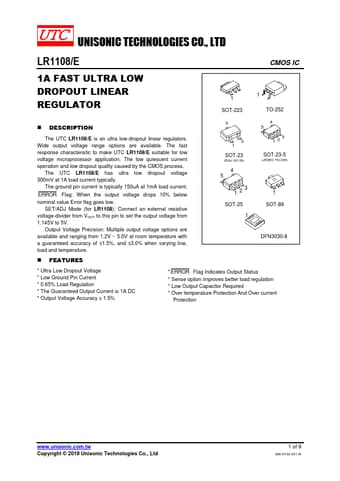

LR1108 1A FAST ULTRA LOW DROPOUT LINEAR REGULATOR by UTC - Datasheet Preview — Datasheet preview – LR1108

Datasheet Details

Part number	LR1108
Manufacturer	UTC
File Size	351.18 KB
Description	1A FAST ULTRA LOW DROPOUT LINEAR REGULATOR
Datasheet	LR1108 Datasheet
Additional preview pages of the LR1108 datasheet.

Product details

Description

The UTC LR1108/E is an ultra low-dropout linear regulators.

Features

3 2 1 SOT-23 (EIAJ SC-59) 4 5 123 SOT-25 1 4 5 123 SOT-23-5 (JEDEC TO-236) 1 SOT-89 DFN3030-8.
Ultra Low Dropout Voltage.
Low Ground Pin Current.
0.65% Load Regulation.
The Guaranteed Output Current is 1A DC.
Output Voltage Accuracy ± 1.5%.
ERROR Flag Indicates Output Status.
Sense option improves better load regulation.
Low Output Capacitor Required.
Over temperature Protection And Over current Protection www. unisonic. com. tw Copyright © 2019 Un.
